Used 2019 Heartland Bighorn 3575EL

Fifth Wheel

Stock #P91117

Cleveland, TX

Full Body Paint! Insulated Thermo-Pane Windows! Yeti Package! Hercules 14 ply Tires! 6 Point Auto Levelers - Solid Wood Cabinets and Cabinet Styles - MCD Day & Night Shades - 50 INCH LED TV - Power Cord Reel - King Bed - One Owner!

1 of 6

39ft long
13,050 lbs
Sleeps 4

3 slides
Rear Living Area

Kitchen Island

See All Specs

Specifications

Sleeps	4	Slides	3
Length	39 ft 4 in	Ext Width	8 ft
Ext Height	13 ft 3 in	Hitch Weight	2435 lbs
GVWR	16000 lbs	Dry Weight	13050 lbs
Fresh Water Capacity	65 gals	Grey Water Capacity	90 gals
Black Water Capacity	45 gals	Tire Size	LT235/85R16-G
Furnace BTU	40000 btu	Available Beds	King
Refrigerator Type	Stainless Steel	Refrigerator Size	18 cu ft
Cooktop Burners	3	Number of Awnings	1
Axle Weight	7000 lbs	LP Tank Capacity	30
Water Heater Capacity	12 gal	Water Heater Type	DSI Gas/Electric
AC BTU	30000 btu	TV Info	55" LR LED HDTV
Awning Info	17' Power	Axle Count	2
Number of LP Tanks	2	Shower Type	Shower w/Seat
Electrical Service	50 amp	VIN	5SFBG3924KE391117

Description

Full Body Paint!

Thermo-Pane Windows!

Yeti Package!

Heartland Bighorn fifth wheel 3575EL highlights:

Plenty of Storage
Pull Out Desk
Kitchen Island
Panoramic Windows
King Bed

For total comfort and convenience this Bighorn 3575EL Elite fifth wheel has thought of it all, starting with triple slides for a spacious interior. You will enjoy the pull-out desk in the living area which makes it handy to check mail or do a little work from the road when needed. The kitchen island will also make food prep and entertaining super easy by providing extra counter space and the sink for cleaning up. And, when you are ready for a relaxing evening, or a great night's rest, the king bed slide out will not only provide a comfortable place to slip off to dream land, but added room to move about in your private bedroom. There is also plenty to love about the outside as well with a 17' awning for a bit of outdoor living space, and the unobstructed pass-through storage compartment is super convenient for stowing away all of your outdoor camping gear and more. For those who can't get enough of the outside, the large panoramic windows in the rear and along the dinette will certainly bring you a great view when indoors!

Are you ready for a luxury fifth wheel? Well, come check out any of the Bighorn models. The exteriors feature the largest amount of storage with 140 cu. ft. of storage for all of your gear. These models have an E-Z Flex suspension system by Dexter with quad shocks which offers the smoothest ride around! There is a heated and enclosed underbelly so you can easily camp in all types of weather. Along the rear and at the dinette you can enjoy the scenic view from the panoramic windows. Inside each model you will find glazed hardwood Sedona cabinetry plus Amish-crafted hardwood cabinet doors with hidden hinges and drawers. There are plenty of residential features such as the resilient flooring, the stainless steel sink with matching solid surface sink covers, and the 20" deep size drawers. Come make a Bighorn your home away from home!

Features

Standard Features (2019)

Hand Crafted Cabinets

Glazed hardwood Magnolia Maple cabinetry & fascia
Amish-crafted natural hardwood cabinet doors with hidden hinges and drawers
All cabinet frames are pre-drilled, and screwed together - not stapled
Baltic birch drawer construction (Real Wood)
Deluxe ball-bearing drawer guides
PATENT PENDING Front Cap and Frame Design
SPECIALLY Designed and Engineered For SHORT BED TRUCKS, allows for tighter turning radius on short bed, extended cab trucks
Truly unique aerodynamic profile
Painted front cap

Exterior

High gloss sidewalls
Entry door overhead light
Automotive aerodynamic styled rear cap with LED turn lights
Painted aluminum rear ladder
2" Accessory receiver

Universal Docking Center

12 volt light
Exterior shower with hot & cold water
Black tank flush system hook up
City water hook-up with high pressure fresh tank fill
Shielded RG-6 coaxial cable hook-up
Satellite hook-up (roof or tri-pod)
Holding tanks pull handles
Winterization valves

Largest Exterior Storage in Its Class!

Offering over 140 cubic feet of storage!
Large insulated slam baggage doors
Unobstructed pass-through design
12V lights
1 cable outlet / 110 volt outlet

Window

Frameless dark tinted safety glass windows with UV inhibitor
Huge panoramic rear bay window
Huge panoramic windows in dinette
Ventilation slider side windows

Tank Size & LP Gas

67 gallons - fresh water capacity
135 gallons waste water - 90 gal. grey / 45 gal. black
(2) 30# LP bottles with auto change over (room for (2) 40# LP bottle option)

Plumbing

Color-coded Plumb-PLEX™ water lines with 10/25 year warranty
Quick and easy winterization system

Bedroom

Built-In closet system featuring hanging clothes rods, recessed shelving
King size bed (N/A 3160 EL)
Upgraded foam mattress
Two windows in slide for better air flow (N/A in 3585RL, 3750FL)
Tall dresser with four large drawers
6´4" bedroom ceiling height throughout
Level floor between bath and bedroom
LED reading lights over bed
Storage shelves in bed slide room
Deluxe headboard design
Pillow package and comforter
Massive under bed storage
Pull-out storage drawer in steps
32" deep bedroom electric slide rooms (most models)

Construction

Laminated fiberglass sidewalls
Double-welded aircraft quality aluminum superstructure cage construction
Drip rail with down spouts
Deluxe power exterior awning
Welded aluminum frame
Walkable roof decking
One-piece seamless EPDM rubber roof
Radius metal roof cap
Strong 12" I-beam frame with rust prohibitive coating
Hydraulic landing gear jacks (no snap pins required)
Six point auto leveling system
Seamless corrugated underbelly material
Heated and enclosed underbelly
Heated and Insulated holding tanks & gate valves
Flexfoil insulation (R-14)

3" Laminated Floor Construction

Strong aluminum framing
Block foam insulation
3/8" seamless decking
Thermo-board luan on the bottom
R-14 laminated upper deck floor

Heating & Cooling

Seamless one piece below floor heat duct
42,000 BTU furnace
Whisper Quiet A/C system - includes dual high output 15,000 BTU A/C units
Insulated in-roof A/C duct system for maximum efficiency
Air conditioned stool room

Tires & Axles

Heavy-duty G-rated 16? tires
Aluminum rims
Spare tire
Mor-Ryde™ suspension system by Dexter with quad shocks - for the smoothest ride around
7,000 lb. Dexter axles with Easy-Lube™ hubs (all models)
2" x 12" Nev-R-Adjust brakes by Dexter
ABS fender skirts

Interior

All-in-one master control panel with DSI water heater switch, tank level monitors, slide switches and light switches
“Welcome back light”
MCD roller shades - Day/Night
Metal entry handle
Custom slide out fascia
Convection oven
Programmable safe
Power Theater seating (N/A 3010RE) (3750FL standard)
Deluxe coffered ceiling (N/A 3750FL)

Power

80 Amp/12V DC power converter
50 Amp Power Cord Reel
Dual battery box (1 battery included)
110V exterior electrical receptacles
Battery disconnect

Appliances & Lighting

18 Cu.Ft stainless steel refrigerator
3-burner cook top w/oven
30" microwave oven over the range
Boutique pull out sprayer faucet in kitchen
12 gal. water heater (gas/electric DSI)

Total Insulation Values

Walls - R11 *All formaldehyde-free insulation
Roof – R38
Slide room floors - radiant insulation R38 equivalent
Main floor - R38 • upper deck floor - R14

Bath

6´4" bath/bed ceiling height
Residential resilient flooring all linoleum
Solid surface countertop with undermount sink and matching sink cover
Large mirrored medicine cabinet
Linen base cabinet storage

Entertainment & Connections

Decorative glass door inserts
55" LED high definition TV all models
Pre-wired for Winegard Trav’ler satellite system
Residential style receiver with built-in DVD Player, FM radio and BluetoothTM

Commode

Power roof ventilation
Dual 12V LED lights with soft lighting lenses
Porcelain commode w/foot flush

Living Room

Power Theater Seating
Upgrade flip & fold sleeper sofa
110V ceiling fan with light kit (N/A 3160, 3260)

Kitchen

Recessed LED lighting
Real solid surface countertops with pencil nose edge
Residential resilient flooring
Deep residential sized cabinets
Toe kicks (most models)
Residential size, stainless steel kitchen sink with matching solid surface sink covers
20" deep residential size drawers
Custom crafted dinette table and two chairs with built-in storage
Large, deep pantry
Fan with rain sensor

Shower

1-piece fiberglass shower
Elegant glass shower surround
Domed king skylight over shower

Interior Options

Electric fireplace
32" bedroom TV
Large (2x2) four door refrigerator
Three speed, temperature control
Fan in bathroom with rain sensor
Queen bed IPO king bed (Queen std on 3160EL)
22 cu.ft. refrigerator with stainless steel appliances

Exterior Options

Full body paint
Mor/Ryde hitch
Slide-topper awnings
Dual pane frameless windows
Generator prep
5.5 Onan generator (ask dealer)
Heat pump options (ask dealer for details)
Yeti extreme weather package

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Excellent Customer Service
We went to visit RV Station on a Saturday and met Ted. We had visited all the other big box RV stores and we’re not impressed with the salespeople. Ted, Kirby and all of the staff at RV Station, Katy are awesome. Our walkthrough with Jesse was amazing. He took his time and explained everything and being

Elaine
Excellent Customer Service
The service here was incredible and super fast ! I had gone to 2 other places including Holiday World and had no luck getting approved with low credit but Zach at RV Station got me approved the same day. Got approved on a wednesday and they offered to deliver it for me that same Friday . Definitely

Jose
Excellent Customer Service
Purchased a 2019 Jayco 5th wheel. The last week of October 2019. Salesman (Ruben) very professional and helpful. Service (Bill) did a great job helping get me ready for the road. I experienced an issued with the RV the next day at the campground, was losing power to the RV. Contacted Bill in service

Timothy

We are here to help, call us at
346-322-1423 or Contact Us

We are here to help!

346-322-1423
Contact Us
Contact Sales

RV Station - Texas RV Show is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @956-655-1101 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

Used 2019 Heartland Bighorn 3575EL

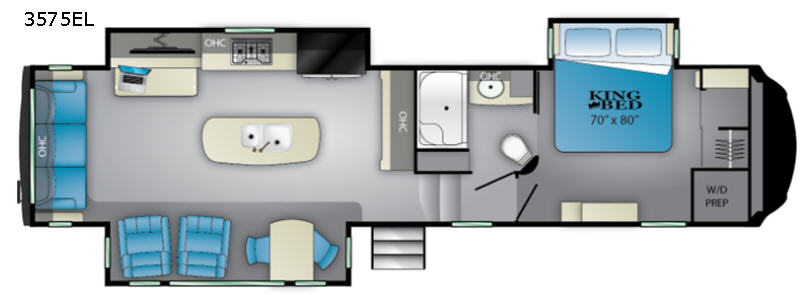

3575EL Floorplan
