Used 2015 Heartland Bighorn 3585RL

Fifth Wheel

Stock #C4643

Donna, TX

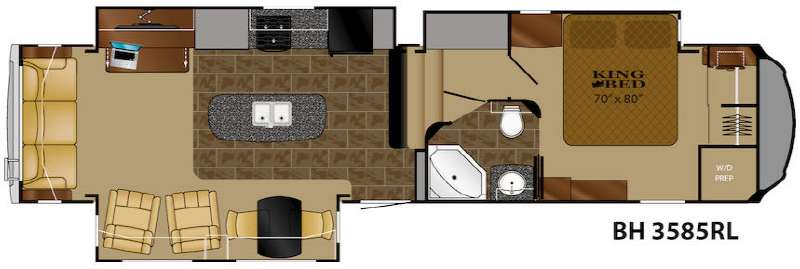

Floorplan - 2015 Heartland Bighorn 3585RL

1 of 6

39ft long
12,865 lbs
Sleeps 4

3 slides
Rear Living Area

Kitchen Island

See All Specs

Specifications

Sleeps	4	Slides	3
Length	38 ft 9 in	Ext Width	8 ft
Ext Height	13 ft 3 in	Int Height	6 ft 5 in
Hitch Weight	2350 lbs	GVWR	16000 lbs
Dry Weight	12865 lbs	Fresh Water Capacity	73 gals
Grey Water Capacity	90 gals	Black Water Capacity	45 gals
Tire Size	LT235/85R16G	Furnace BTU	42000 btu
VIN	5SFBG3821FE294643

Description

Enter this Bighorn fifth wheel model 3585RL by Heartland and see how convenient all of your future camping trips can be with triple slides for added interior space, a kitchen island for added prep space, plus more!

There is a dining table with chairs and two recliners located in the slide just to the left of the entry door. Both provide overhead storage, plus there is hidden storage in the dinette chair cushions. Along the rear wall you will find a flip and fold sleeper sofa with end tables including storage above the entire width of the fifth wheel. The overhead cabinets have decorative glass inserts.

The slide opposite the door offers the kitchen appliances as well as an entertainment center with flat screen TV, pull-out desk space, and optional fireplace below.

In the kitchen find all the amenities needed to create gourmet meals on the go. There is a large pantry, a three burner range, refrigerator, and more storage with overhead cabinets and plenty of drawer space for things. A convenient island allows for added prep space and also features a double kitchen sink for when it's time to clean up.

There is a handy closet just inside the door on your right before you head up the stairs to the front bedroom and bath. As you get to the top step you will notice hall storage on the left that is part of the bedroom slide out which also features a nice size nightstand, and a king size bed.

The bathroom on your right at the top of the steps features an angled shower, toilet and sink, both with overhead cabinets. A sliding door leads directly into the master bedroom where you will find a storage cabinet and a dresser opposite the bed, a front wardrobe with sliding mirrored doors including a closet organizer featuring space for hanging clothes, plus drawers, and shelving. You will love the closet in the corner that has been prepped for a washer and dryer so it is easy to extend your stay and have clean clothes, plus so much more!

Features

Standard Features (2015)

Hand Crafted Cabinetry

Glazed hardwood chestnut cabinetry & fascia
Amish-crafted natural hardwood cabinet doors with hidden hinges and drawers
All cabinet frames are pre-drilled, and screwed together - not stapled
Baltic birch drawer construction (Real Wood)
Deluxe ball-bearing drawer guides
PATENT PENDING Front Cap and Frame Design
SPECIALLY Designed and Engineered For
SHORT BED TRUCKS
Allows for tighter turning radius on
short bed, extended cab trucks
Truly unique aerodynamic profile
Painted front cap

Exterior

High gloss sidewalls
Linc multipurpose wireless remote system with LCD touch screen operates slides, power awning, front landing gear and entry door step light
ABS hitch cover
Entry door overhead light
Automotive aerodynamic styled rear cap with LED turn lights
Brushed aluminum rear ladder

Universal Docking Center (U.D.C.)

12 volt light
Exterior shower with hot & cold water
Black tank flush system hook up
City water hook-up
with high pressure fresh tank fill
Shielded RG-6 coaxial cable hook-up
Satellite hook-up (roof or tri-pod)
Holding tanks pull handles
Winterization valves

Largest Exterior Storage in Its Class!

Offering over 140 cubic feet of storage!
Durable rubber flooring
with steel tie-downs
Large insulated slam baggage doors
Unobstructed pass-through design
12V lights
1 cable outlet / 110 volt outlet

Bedroom

Built-In closet system featuring hanging clothes rods, recessed shelving and built-in dresser
King size bed (N/A 3160 EL)
Memory foam pillow top mattress
Two windows in slide for better air flow (N/A in 3585RL, 3750FL)
Tall dresser with four large drawers
6´4? bedroom ceiling height throughout
Level floor between bath and bedroom
Adjustable reading lights over bed
Storage shelves in bed slide room
Deluxe headboard design
Pillow package and comforter
Massive under bed storage
Pull-out storage drawer in steps
32? deep bedroom electric slide rooms (most models)

Wall Construction

Laminated fiberglass sidewalls
Double-welded aircraft quality aluminum superstructure cage construction
Drip rail with down spouts
Deluxe power exterior awning

Standard Window Features

Frameless dark tinted safety glass
windows with UV inhibitor
Huge panoramic rear bay window
Huge panoramic windows in dinette
Ventilation slider side windows

Laminated Roof Construction

Welded aluminum frame
Walkable roof decking (3/16”)
One-piece seamless EPDM rubber roof
Radius metal roof cap

Laminated Floor Construction

Strong 2½? aluminum framing
Block foam insulation
3/8? seamless decking
Thermo-board luan on the bottom
R-14 laminated upper deck floor

Frame & Landing Gear

Strong 10? I-beam frame with rust prohibitive coating (12? on larger models)
Hydraulic landing gear jacks (no snap pins required)
Heavy duty electric rear stabilizer jacks
(N/A with six point auto leveling system)

Tires & Axles

Correct Track alignment system
Heavy-duty G-rated 16? tires
Aluminum rims
Spare tire
E-Z Flex™ suspension system by Dexter with quad shocks - for the smoothest ride around
7,000 lb. Dexter axles with Easy-Lube™ hubs (all models)
2? x 12? Nev-R-Adjust brakes by Dexter
Monogrammed ABS fender skirts

Underbelly

Seamless corrugated underbelly material
Heated and enclosed underbelly
Heated and Insulated holding tanks & gate valves
Flexfoil insulation (R-14)

Plumbing

Color-coded Plumb-PLEX™ water lines with 10/25 year warranty
Quick and easy winterization system

Tank Size & LP Gas System

67 gallons - fresh water capacity
135 gallons waste water - 90 gal. grey / 45 gal. black
(2) 30# LP bottles with auto change over (room for (2) 40# LP bottle option)

Power

80 Amp/12V DC power converter
50 Amp detachable marine cord
Dual battery box (1 battery included)
110V exterior electrical receptacles
Battery disconnect

Heating & Cooling

Seamless one piece below floor heat duct
42,000 BTU furnace
Whisper Quiet A/C system - includes dual high output 15,000 BTU A/C units
Insulated in-roof A/C duct system for maximum efficiency
Air conditioned stool room

Total Insulation Values

Walls - R11 *All formaldehyde-free insulation
Roof – R34
Slide room floors - radiant insulation R38 equivalent
Main floor - R38 • upper deck floor - R14

Main Slide Room

6´5? ceiling height
Hydraulic operating system
Selector valves for slide rooms
Double squeegee seals with one-piece
Weather-proof floor pan
12V LED lights
Cabinets above sofa

Hydraulic manual override system

Entertainment & Connections

Computer desk station (most models)
Decorative glass door inserts
46? or 55? LED high definition TV (Depends on model)
Pre-wired for Winegard Trav’ler satellite system
Residential style receiver with built-in DVD Player, FM radio and BluetoothTM

Interior Standards

All-in-one master control panel with
DSI water heater switch, tank level monitors, slide switches and light switches
“Welcome back light”
MCD day/night roller shades
Metal entry handle
Custom slide out fascia
Oil-rubbed bronze lighting package

Living Room

Residential swivel glider recliners
with power massage
Upgrade flip & fold sleeper sofa
110V ceiling fan with light kit (N/A 3160, 3260)

Appliances and Lighting

8 Cu.Ft refrigerator
with hardwood door inserts
3-burner cook top w/oven
30? microwave oven over the range
boutique pull out sprayer faucet in kitchen
12 gal. water heater (gas/electric DSI)

Kitchen

Recessed LED lighting
Real solid surface countertops
with pencil nose edge
BeauFlor resilient flooring
24? deep residential sized cabinets
Toe kicks (most models)
Residential size, stainless steel kitchen sink with matching solid surface sink covers
20? deep residential size drawers
Custom crafted dinette table and
two chairs with built-in storage
Large, deep pantry
Three speed, temperature control
Fan with rain sensor

Bath Area

6´4? bath/bed ceiling height throughout
Beauflor resilient flooring
Solid surface countertop with undermount
sink and matching sink cover
Large mirrored medicine cabinet
Linen base cabinet storage

Shower

1-piece fiberglass mini mega shower
(most models)
Elegant glass shower surround
Domed skylight over shower

Commode Room

Power roof ventilation
Dual 12V LED lights
with soft lighting lenses
Porcelain commode w/foot flush
Recessed storage shelf

Bighorn Premier Package

High gloss exterior fiberglass sidewalls
Stainless steel appliances
Painted front cap
Frameless windows
Hardwood slideroom fascia
Dyson cordless vacuum
Recessed LED lighting
Upgraded raised panel passage doors
Upgraded mirrored wardrobe doors
Correct Track alignment system
Two folding dinette chairs
Residential swivel glider recliners
with power massage
Whisper quiet A/C system - includes dual high output 15,000 BTU A/C units

Options Exterior

Ivory high gloss sidewalls with painted caps
Full body paint
Six point “Level Up” auto leveling system
Mor/Ryde hitch
Slide-topper awnings
Dual pane framless windows
Generator prep
5.5 Onan generator (ask dealer)
Electric power cord reel with 33´ cord
Heat pump options (ask dealer for details)
Yeti extreme weather package
11/4? Accessory receiver
Outdoor entertainment (includes 32" TV, DVD
stereo combo and power awning on slideroom)

Interior

Electric fireplace (forced option on 3010RE, 3750FL)
Convection oven
32? bedroom TV/DVD combo
Large (2x2) four door refrigerator
Three speed, temperature control
Fan in bedroom or bathroom with rain sensor
Booth dinette (N/A 3750FL)
Queen bed IPO king bed (Queen std on 3160EL)
Programmable safe
Theater seating (N/A 3010RE, 3750FL)
Deluxe coffered ceiling (N/A 3750FL)
22 cu.ft. refrigerator with stainless steel appliances
Honey glazed hardwood cabinets
Dishwasher (N/A 3160EL, 3010RE, 3260EL, 3270RS, 3750FL)

See us for a complete list of features and available options!

All standard features and specifications are subject to change.
